Remote Visual Inspection / vidioscopy / boroscopy

That is very much suitable for pipes, tanks and tubes up to 20 meter lengths.
1. Applications:
This very effective portable inspection device is designed to deliver quality video inspection in a wide range of applications including: a) Sewers lines,
b) Building ducts/piping, c) Wells, d) Power plants, e) HVAC Duct f) Chimneys etc
2. Lighting in Camera:

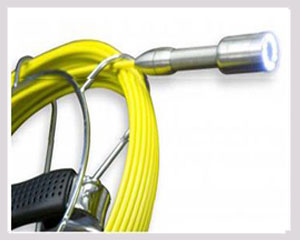

The push camera head contains 12 adjustable LED lights, a flexible spring coiled joint to navigate corners, and a Sapphire lens to resist scratching.
3. Camera:
The high resolution CCD chip is designed to capture bright, crisp, colour video of the inspection area, and it is integrated in to a strait view camera head.
4. Monitor:
The monitor and additional controls are built into a compact, waterproof and lightweight plastic case making it easy to transport, and bring this video scope with you. The 7" TFT LCD display presents a live crisp colour image at your fingertips.

SPECIFICATIONS : Insertion Probe
• Length: 20 meter(65.6'), 35 meter (114.9 foot) and 40 meter(131.2')
• Camera Head Diameter: 23mm (1.0")
• Colour CCD camera with sapphire glass lens
• No articulation
• Fibreglass cable
• 600 Field of View (FOV)
• 00 Direction of view (DOV)
• Waterproof design for portable use
• Illumination: 12 white LEDs
• Special point touch connector to camera

IMAGE HUB : • 7" Colour LCD monitor with Video output, file playback
• Monitor Picture Resolution: 320 (TV Lines)
• SD memory card slot
• Recording format - AVI
• Power adaptor: 110~240VAC, 12VDC/1800mA
• Rechargeable battery for portable use up to 3.5 hours
• Li-ion battery box (4400mAh)
• System Operating Temperature: -200to 1200F
• Operating temperature - 200F~ 1200F (- 28C0~ 500C)


A borescope is an optical tool used to view areas that would otherwise not be visible. A borescope is inserted into the item being evaluated without destroying the item of interest. A Borescope can consist of Rigid or flexible working length Light Source to illuminate the target under inspection.

Optical system that may consist of a relay lens system, rod lens system, fiber optic image guide a CCD or CMOS camera. Eyepiece or Monitor to view the image.

Applications :
Borescopes are used to non-destructively inspect industrial systems and equipment for condition, manufactured parts for quality and security and law enforcement for contraband, intelligence and safety.

Common Inspections Include internal viewing of: • Turbine Engines
• Internal Combustion Engines
• Pipes
• Heat exchanger tubes
• Gear boxes
• Welds
• Foreign Object Retrieval
• Cast Parts
• Manufactured or machined parts

Technical Specifications Operating Environment
Tip Operating Temp: -250C to 800C (-130F to 1760F)
decudeR articulation below 00C (320F)
System Operating Temp: -200C to 460C (-40F to 1150F)
DCL requires warm-up period below 00C (320F)
Storage Temperature: -250C to 600C (-130F to 1400F)
Relative Humidity: 95% max, non-condensing
Waterproof: Insertion tube and tip to 14.7 psi (1 bar, 10.2m of H2O,33.5 ft of H2O)System
Case Dimensions: 48.8 x 38.6 x 18.5 cm (19.2 x 15.2 x7.3 in)System Weight: In Case: 6.50 kg (14.3 lb)
Without Case: 1.77 kg (3.90 lb) Power (Lithium Ion Battery): 8.4V, 38 Wh (2-hour) or 75 Wh
(4-hour)Power Supply AC Input: 90-264 VAC, 50-60 Hz, 1.6A Max.DC Output: 10.2V +5/-3%, 4.9A
Construction: Polycarbonate housings with integrated Versalon™(JP)bumpers
Dimensions: 9.5 x 13.3 x 34.3 cm (3.8 x 5.3 x 13.5 in)LCD Monitor: Integrated 9.40 cm (3.70 in) active
matrix VGA color LCD Joystick Control: 3600 All-Way® Tip articulation, menu access and navigation
Button Set: Access user functions and digital functions
Audio: Integrated 2.5mm headset/microphone jack Internal
Memory: 1GB Flash memory Data
I/O Ports: One USB® 2.0 port VGA Video Out Brightness Control: Auto and Variable Illumination Type: White LED White Balance: Factory default or user Long Exposure: Auto and Manual Standards Compliance and Classifications
Standards Compliance: Group 1, Class A: EN61326-1 (basic radiated immunity) UL, IEC, EN61010-1, CSA-C22.2TOD/NU T1-T8 Camera 6.1 mm (0.242 in) and 8.4mm (0.331 in) Diameter Probes
Image Sensor: 1/6 inch Color SUPER HAD™ CCD camera
Pixel Count: 440,000 pixels Housing: Titanium 3.9 mm (0.154 in) Diameter Probes
Image Sensor: 1/10 inch Color SUPER HAD™ CCD camera Pixel Count: 290,000 pixels
